“Greenman in Autumn” Pendant Dagger, Part 1

  93308_3_b
93308_4_b
93308_5_b
93308_6_b
93308_7_b
Above images courtesy of Bladegallery.com

Pendant_Dagger_1
Beginning a new project – a tiny pendant dagger in my signature “Knapped Steel” style. Here it’s been cut out from 1084 carbon steel.

Pendant_Dagger_2
Decreasing weight of the dagger, left to right – drilling areas in handle – jeweler’s saw cutting through the web – chunks removed…

Pendant_Dagger_3
Left to right – basic lens shape to the blade – carving the “knapped” stone flakes – blackening just ’cause for looks

Pendant_Dagger_4
Texturing the stone flakes on the blade, and carving the “ripper” cutting edge…

Pendant_Dagger_5
Engraving details on the blade front and back, and cutting pockets for gold inlay. There’s no engraving after heat treating!

Pendant_Dagger_6
Press forming copper sheath – hard urethane (red thing), steel die (arrowhead shape), and copper sheet pressed and hand chased…

Pendant_Dagger_7
24 karat gold inlaid in the blade, and the copper sheath trimmed and fitted.

Pendant_Dagger_8
All the pieces roughed out, sheath assembled, titanium scales attached. Once the glue cures, I’ll trim everything neatly.

Pendant_Dagger_9
Since you asked for a profile shot, here you go!

Pendant_Dagger_10
The dagger blank finished and smoothed – ready for engraving!

Pendant_Dagger_11

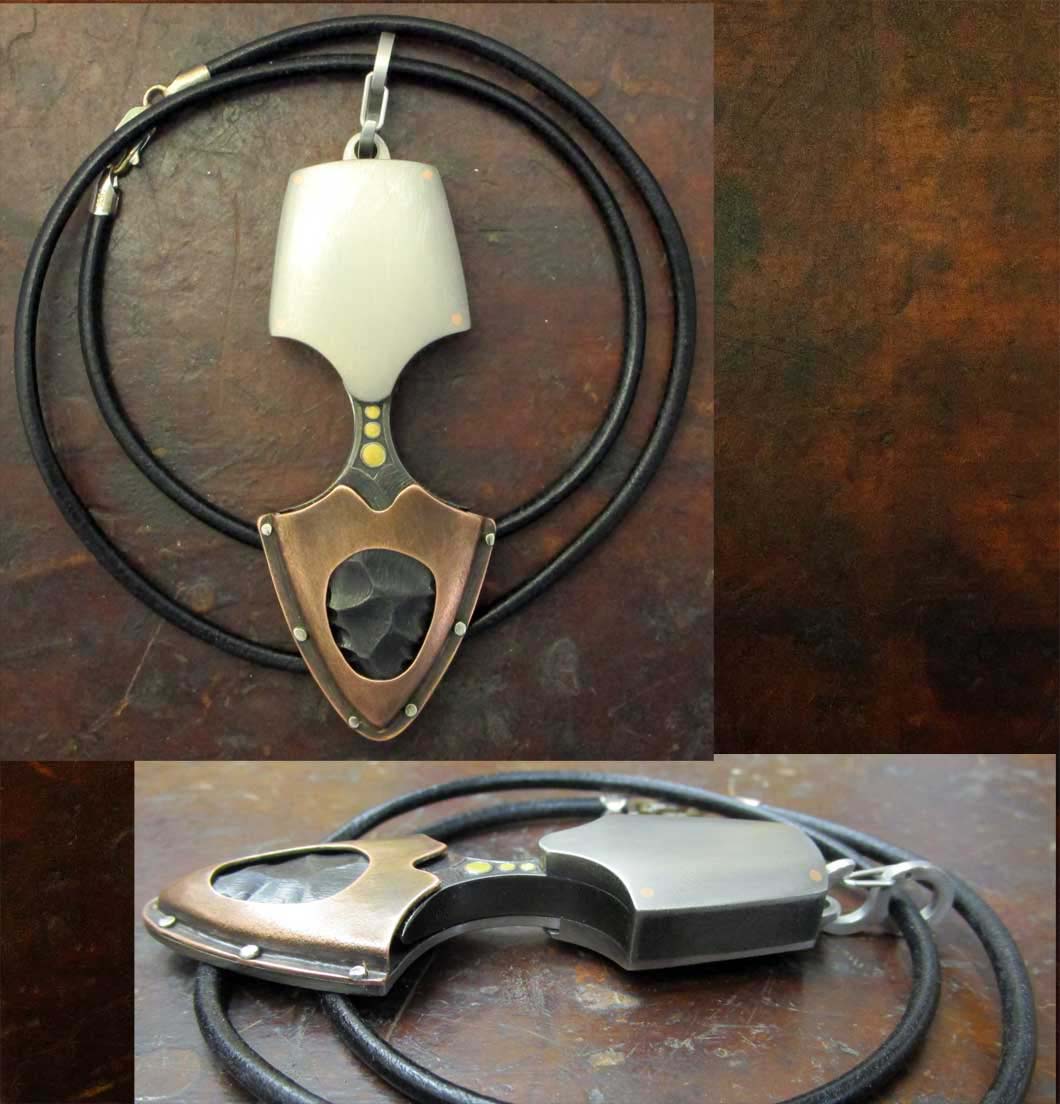

The on-order clip arrived and is now installed – with the clip in place, the dagger cannot come out of the sheath. To access the dagger, unclip the sheath from the leather neck cord…

Thanks for looking!
